OVERVIEW

Are you looking for better quality output, higher job production and a product that eliminates typical mixing issues? Rugged, reliable and American-made, the WM45 is a perfect mixer for patch and repair projects. Sturdy, portable and easy to use, this product will help you out for the long haul.


SPECIFICATIONS

Capacity 4.5 cu ft/ 0.5 bag
Power Options Electric 1.0 hp 115/230 V, 16/8 FLA, 1Ø
NEMA plug configuration 15A 125V (5-15P)
Honda GX160 gas engine
Drum Type Steel
Drive Type V belt
Dump Type Manual
Seal Type Greaseable
Forklift Loops None
Weight

380 lbs

Width

28.5 in

Length

67 in

Height

41 in

External heavy duty on/off switch

Yes

Hitch

None, Handle bars

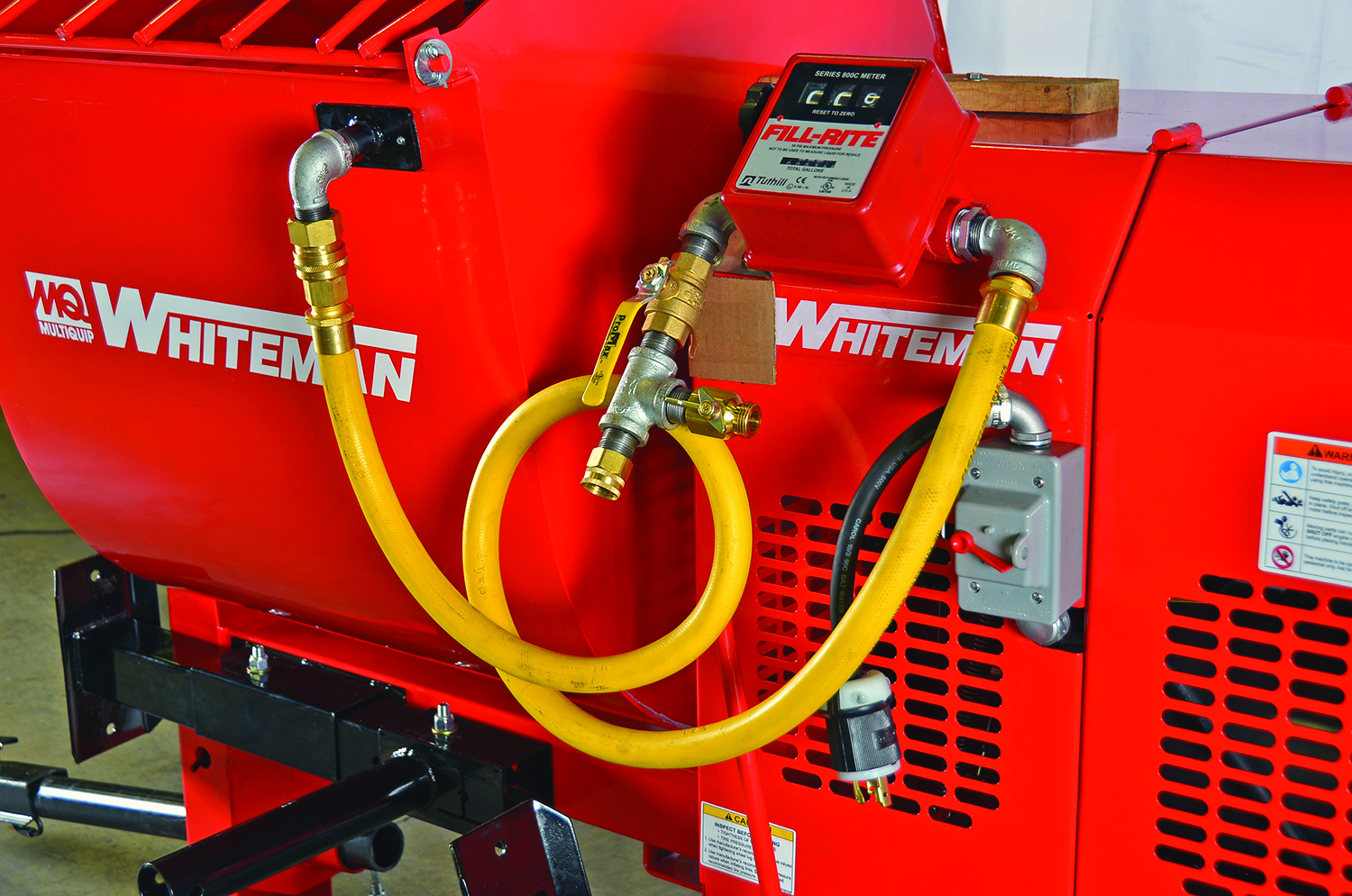

File Rite Meter System

Yes

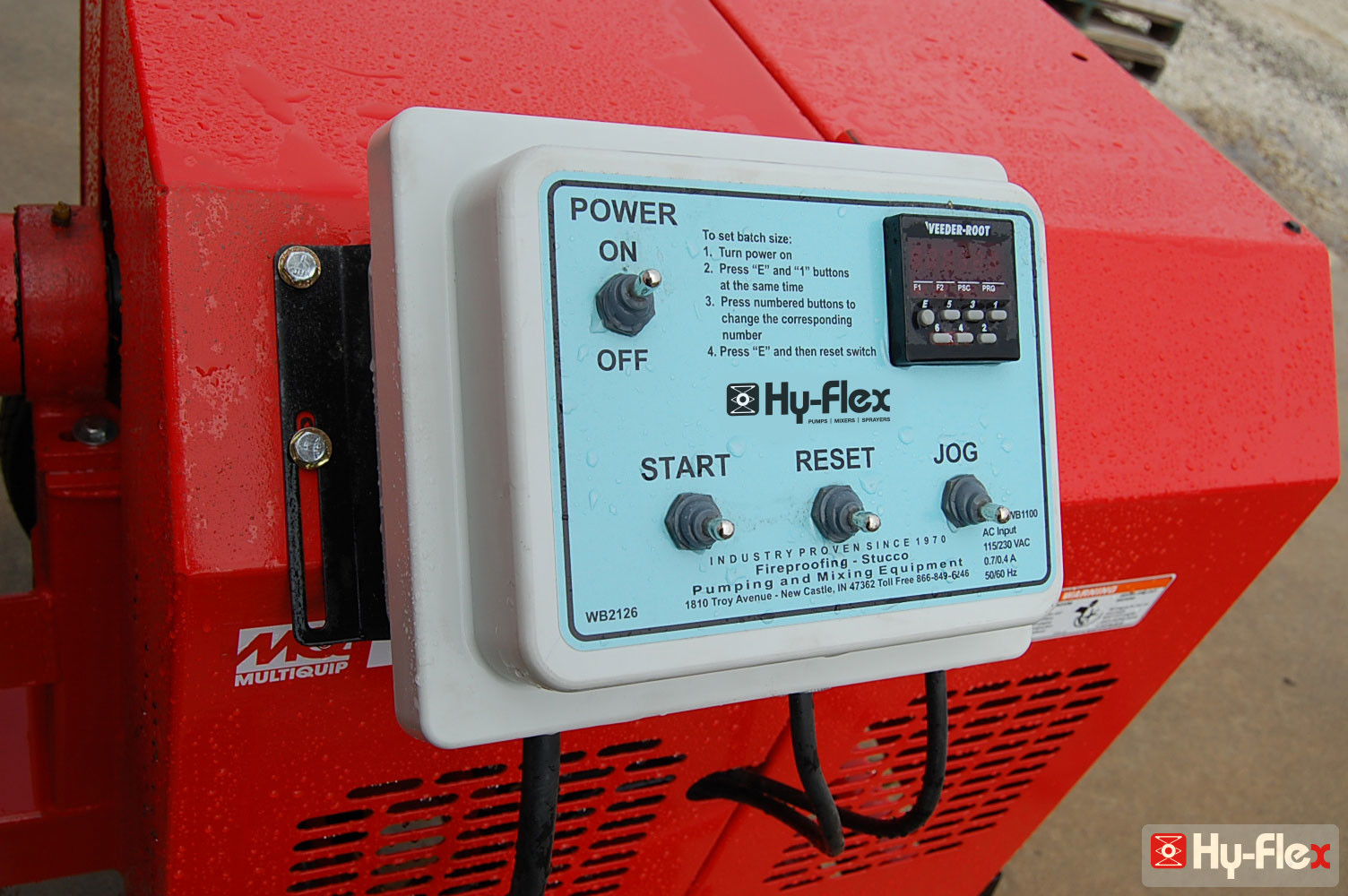

Water Batch Meter

Yes

Recommended Cord Size

115V
50' 12 ga 15 A 115V
100' 10 ga 15A 115V
200' not recommended

230 V 1 ph
50' 12 ga 20 A 230V
100' 10 ga 20 A 230V
200' 8 ga 20 A 230V



Specifications subject to change without notice
Copyright 2018 Hy-Flex Corporation. All information contained within this document is based on the latest information available at the time of publication.
Hy-Flex reserves the right to make changes at any time without notice.


BENEFITS

  • 15A 115 V, 1 hp stocked
  • Small capacity — ½ to 1 bag
  • Dumps 7.5 in high manually
  • Manual dump
  • Wheel barrow-style handles make it easy to move
  • Easy-to-access dump and mix controls
  • Greaseable shaft seal for long life
  • Water meter options available
  • Recommended for patch pump and patch and repair projects


APPLICATIONS

  • Low/Medium/High-Density Fireproofing
  • Waterproofing
  • Plaster/Stucco Spraying
  • Injection Work
  • Manhole Restoration
  • Concrete Repair Mortar
  • Cellular Concrete
  • Bridge Repair
  • Self-Leveling Floor Underlayment
  • Slab Jacking
  • Cementitious Coatings Under 1/8 inch Aggregate
