RS24E
Portable Pump

Ideal for low volume production and high volume patching applications.

Looking for assistance with this product? Get support now!

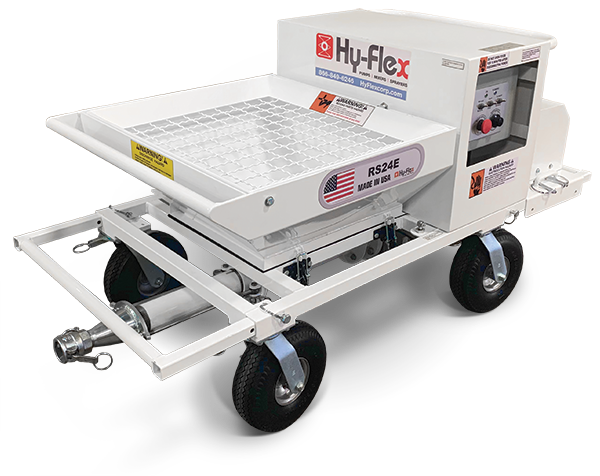

RS24E-Hy-Flex

Product Details

  • Overview
  • Specifications
  • Benefits
  • Applications





Our RS24E pump is ideal for low volume production and high volume patching applications. It works well with thick and hard to feed materials, producing pump pressure of 200 psi with a 24 gallon / 1 bag hopper capacity and a 230v single phase power 20 amp.

The RS24E is lightweight and portable with telescoping handles and the mobility design allows it to move in and out of position sideways. With a 5 minute disassembly, maintenance and break down for transport are easy. Its square design allows it to be safely and quickly packed into trucks and trailers.

Patents Pending





Power 3 hp electric inverter drive
Speed Control Dial-a-Speed electronic speed control
Pump Output* 5.5 Gallons per minute
Pump Size Standard 2L4 rotor & stator
Pump Hopper Capacity 24 gal or 1 bag
Pump Charge Height 26 in
Pressure Output* 200 psi
Remote Control 2-wire remote can be extended up to 500 ft
Width 28"
Length  55"
Height 32.5"
Weight 350lbs bare machine
Power Requirement 50/60 HZ 208/240v 20 A 1 ph
Optional high voltage 480v upon request
Wheels 10" foam filled swivel caster
Drive Direct drive integrated gear motor
Pump Outlet 1-1/4 camlock
Air Output 5.9 Cfm with Optional Compressor
Directional Control Forward and reverse
Max Aggregate Size ** 1/8 in
Max Pumping Distance 150ft



12 cfm @ 40 psi (90 psi max) onboard Chinook compressor

Electric start, rubber isolated engine mounts, reversible

4 prong flat plug, submersible LED rear lights, 2 in ball receiver, independent torsion axles, jack w/caster

Truck Mount (TM), Gas Engine (G), Diesel Engine (D) Adjustable Stator Tool Box Mount

✝ 1 bag = 3.0 cu ft yield

* Pumping distance and output may be increased or decreased significantly depending on mix design, but we believe these to be very achievable in most instances.

** This is maximum aggregate size recommended for pump. Mix design will determine how effectively the product will pump.



Copyright 2021 HyFlex Corporation. All information contained within this document is based on the latest information available at the time of publication.
HyFlex reserves the right to make changes at any time without notice.

  • Low volume production and high volume patching applications
  • Lightweight portable design with telescoping handles
  • 5-minute disassembly for break down transport and ease of maintenance
  • Mobility design allows it to move in and out of position sideways
  • Square design allows it to be packed into trucks and trailers easily
  • Compressor mounts front and back and removes very easily
  • Foam filled pneumatic swivel casters for reliable portability
  • Easy to access rear driveshaft output to put a wrench on
  • Works well with thick and hard to feed materials
  • Produces pump pressure of 200 psi
  • 20 gallon/ 1 bag hopper capacity
  • Output 5.5 GPM or 15 bags/hr of fireproofing
  • 230v single phase power 20 amp
  • Hopper grate proximity switch to prevent injuries

  • Low/Medium/High-Density Fireproofing
  • Waterproofing
  • Plaster/Stucco Spraying
  • Acoustical Plastering
  • Injection Work
  • Manhole Restoration
  • Concrete Repair Mortar
  • Cellular Concrete
  • Bridge Repair
  • Self-Leveling Floor Underlayment
  • Slab Jacking
  • Cementitious Coatings Under 1/8 inch Aggregate
  •
