wm90-v-belt-drive-mixer

OVERVIEW

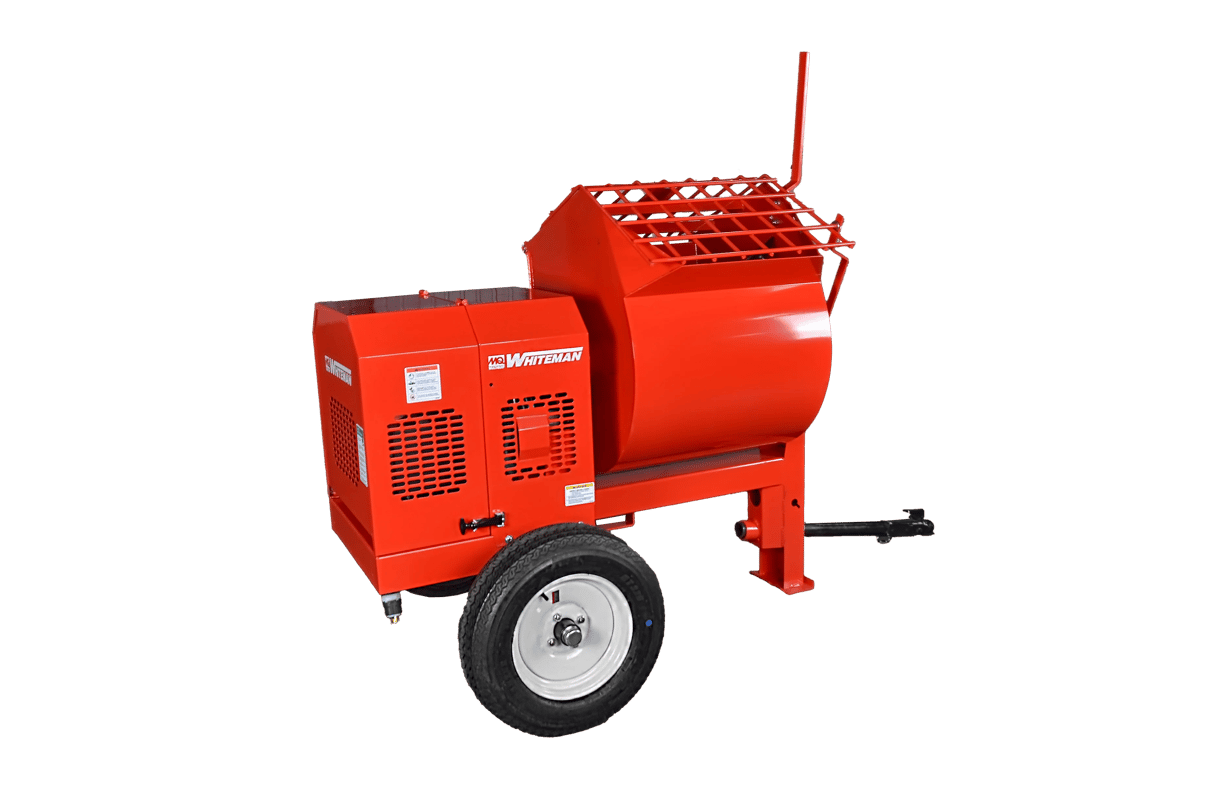

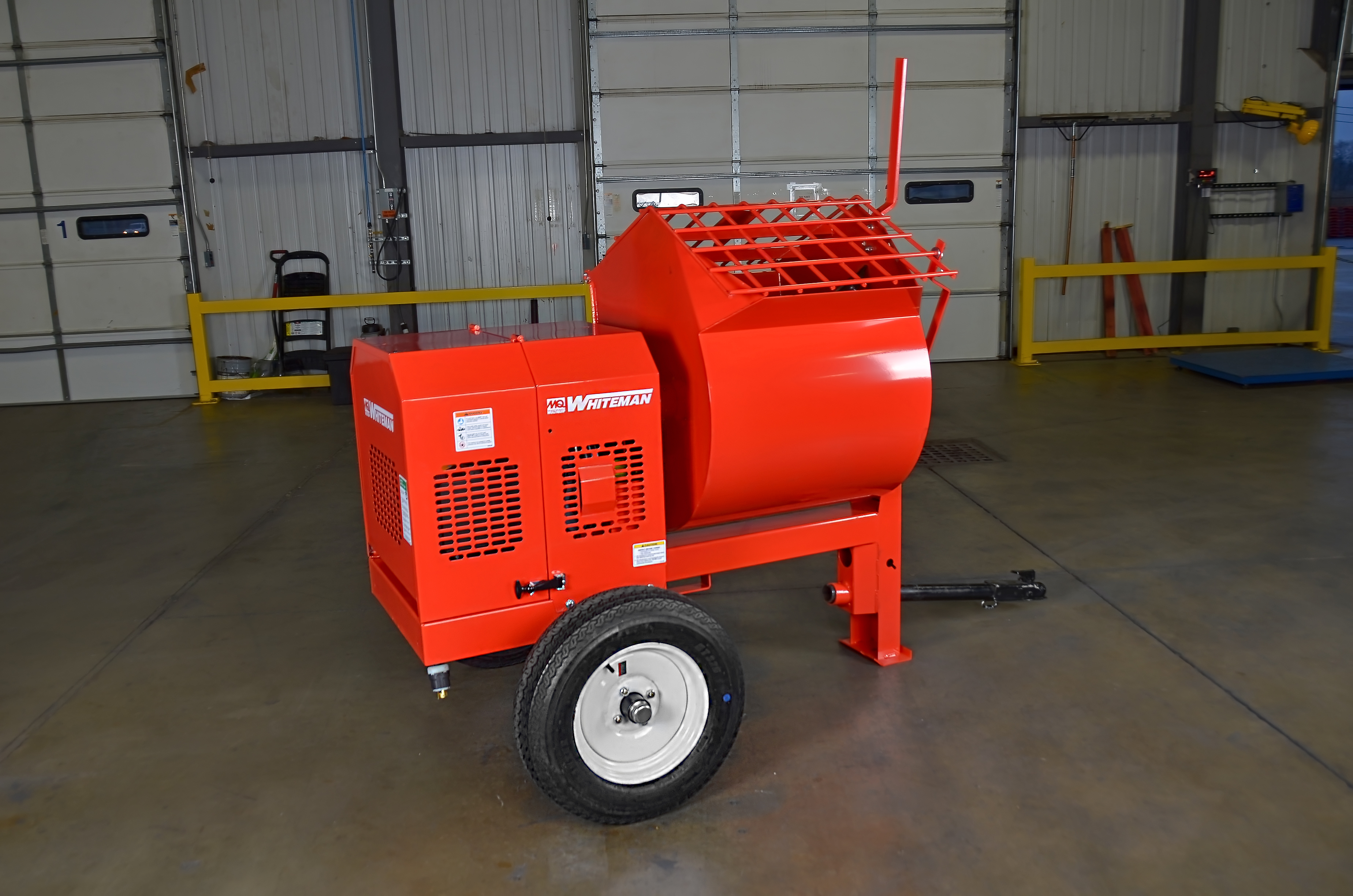

Built tough for years of reliable field use, the WM90 V-Belt Drive Mixer is simple, portable and easy to use. It’s also clean, efficient and highly compatible with our pumps and sprayers. We guarantee that it will serve as a great complement to any Hy-Flex product.


SPECIFICATIONS

Capacity 9.0 cu ft/2.0 bags
Power Options Electric 3 hp 230V, 17 FLA 1Ø
NEMA plug configuration 30A 250V (L6-30P)
Honda GX160 or GX240 gas engine
Drum Type Steel or Poly
Drive Type V Belt
Dump Type Manual
Seal Type Greasable
Forklift Loops One Loop
Tire Size B78 x 13"
Weight 770 lbs
Width 50 in
Length 98 in
Height 59 in
Discharge Height 21 in without legs
34 in with legs
Hitch Ball or Loop
External Heavy Duty On/Off Switch Yes
Fill Rite Meter System Yes
Water Batch Meter Yes
Heavy Duty Adjustable Legs Yes
Recommended Cord Size 230 V 1 ph
50' 10 ga 30 A 230V
100' 10 ga 30 A 230V
200' 8 ga 30 A 230V

Specifications subject to change without notice
Copyright 2018 Hy-Flex Corporation. All information contained within this document is based on the latest information available at the time of publication.
Hy-Flex reserves the right to make changes at any time without notice.


BENEFITS

  • 17A 230V 1Ø, 3 hp stocked
  • Medium capacity – 2 bags
  • Dumps 21 in high manually and up to 35 in with optional legs
  • Manual dump
  • Easy-to-access dump and mix controls
  • Greaseable shaft seal for long life
  • Legs and water meter options available
  • Recommended for 30G, 30E or 321ESP


APPLICATIONS

  • Low/Medium/High-Density Fireproofing
  • Waterproofing
  • Plaster/Stucco Spraying
  • Injection Work
  • Manhole Restoration
  • Concrete Repair Mortar
  • Cellular Concrete
  • Bridge Repair
  • Self-Leveling Floor Underlayment
  • Slab Jacking
  • Cementitious Coatings Under 1/8 inch Aggregate
