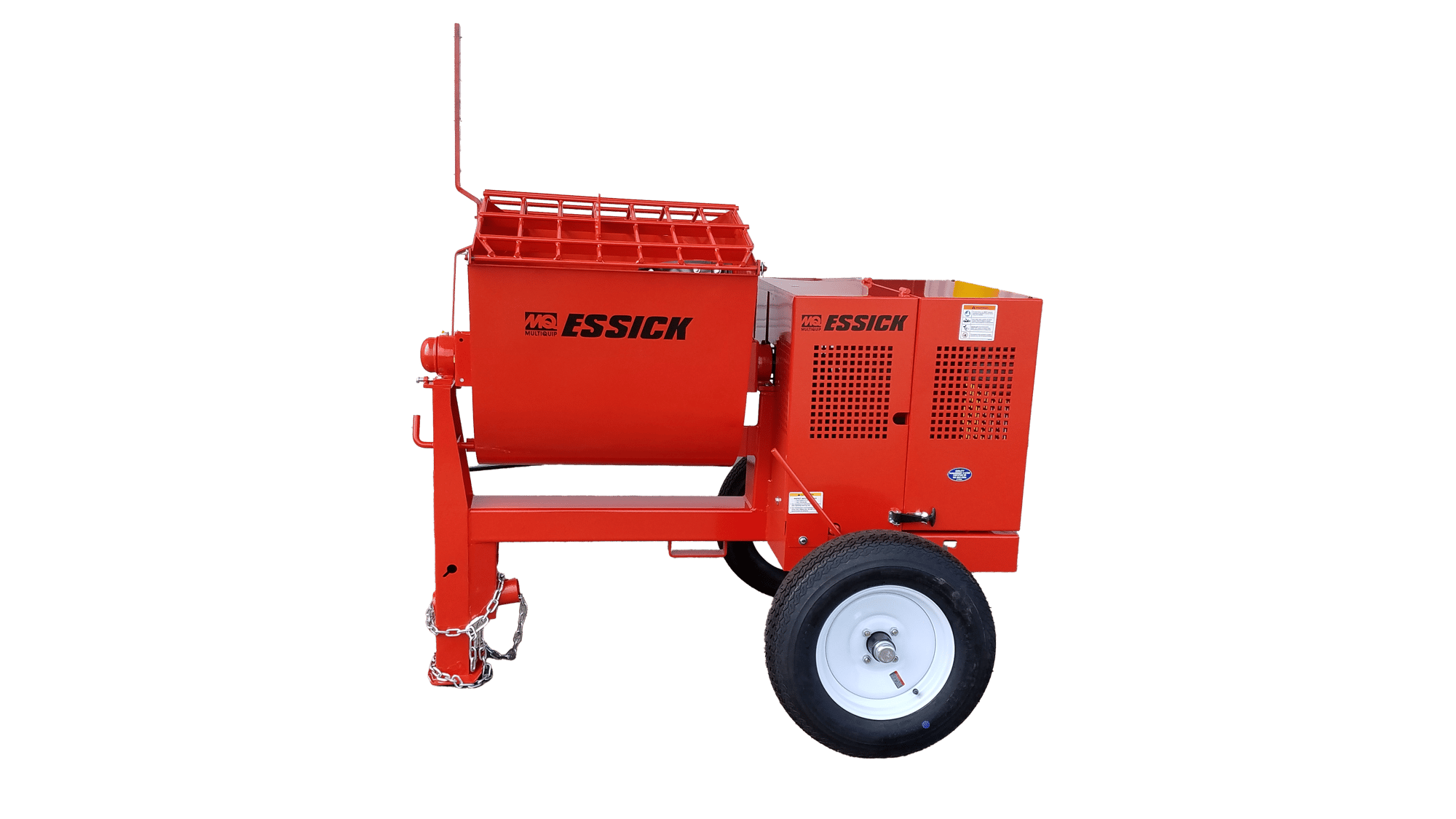

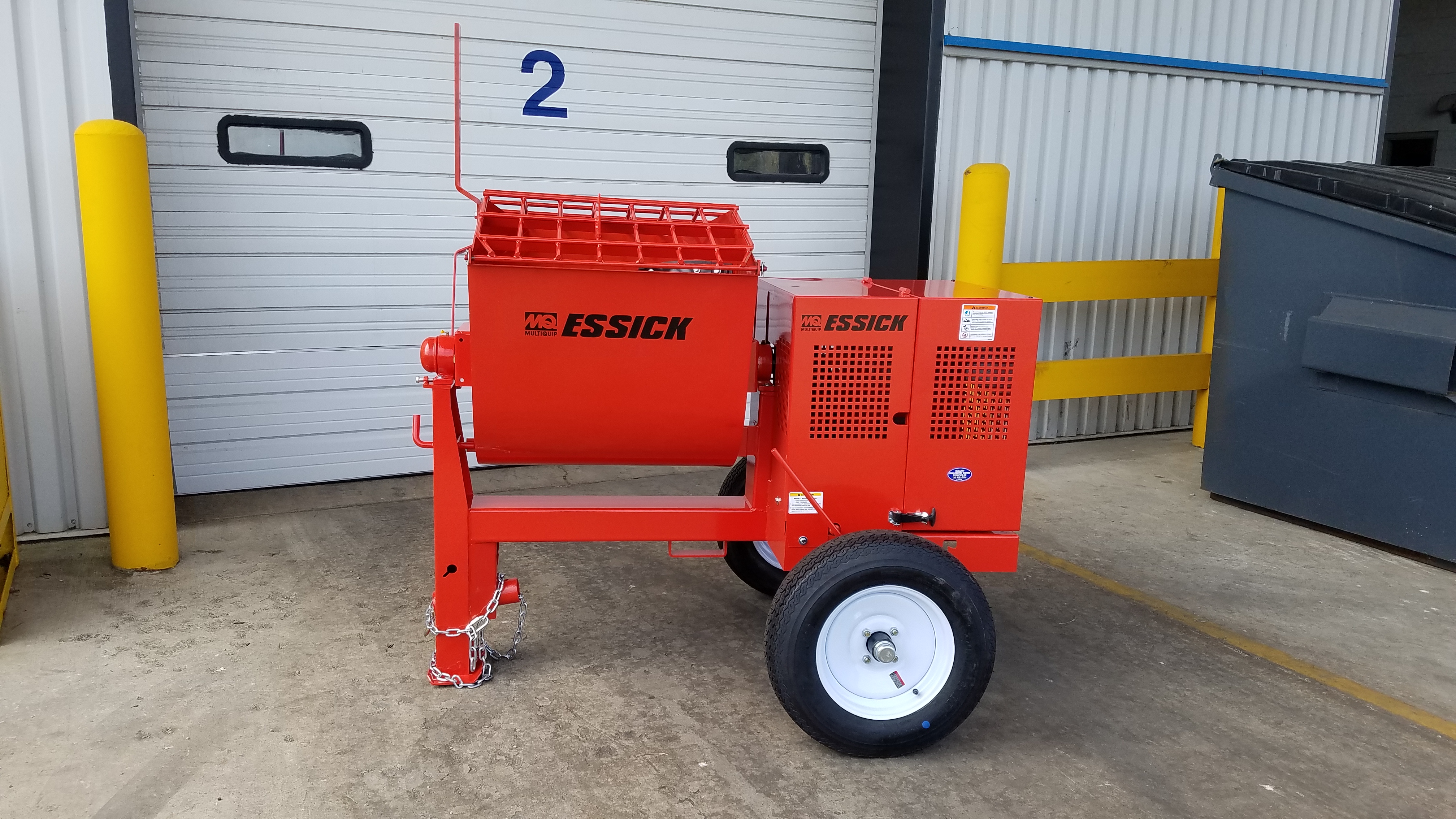

EM12M 12 CU. FT. MECHANICAL DRIVE MIXER

OVERVIEW

Ideal for high-volume mixing, the EM12M Mechanical Drive Mixer can produce up to 40 bags per hour. And it dumps up to 42 in high hydraulically. It pairs particularly well with the 321E and the CM71. Rugged, reliable and all-American, this is a product you can rely on for many years to come.


SPECIFICATIONS

Capacity 12.0 cu ft/3.0 bags
Power Options Electric 5 hp 230, 28 FLA, 1Ø or 230/460, 16/8 FLA, 3Ø
NEMA Plug Configuration 30A 250V 1Ø (L6-30P), 20A 3Ø 250V(L15-20P), 20A 3Ø 480V(L16-20P)
Honda GX340UT gas engine
Drum Type Steel
Drive Type Mechanical Gearbox Drive
Dump Type Hydraulic
Forklift Loops One Loop
Tire Size B78 x 13"
Weight 1040 lbs
Width 56 in
Length 105 in
Height 60 in
Discharge Height 17 in
Hitch Ball or Loop
External Heavy Duty On/Off Swtich No
Fill Rite Meter System Yes
Water Batch Meter Yes
Heavy Duty Adjustable Legs No
Recommended Cord Size 230 V 1 ph
50'6 ga 30 A 230V
100'10 ga 30 A 230V
200'6 ga 30 A 230V

230 V 3 ph
50'10 ga 30 A 230V 3 ph
100'8 ga 30 A 230V 3 ph
200'8 ga 30 A 230V 3 ph

460 V 3 ph
50'12 ga 30 A 230V 3 ph
100'12 ga 30 A 230V 3 ph
200'12 ga 30 A 230V 3 ph


BENEFITS

  • 230V 1Ø, 5 hp stocked
  • Large capacity – 3 bags
  • Produce up to 40 bags per hour
  • Easy to load without platform
  • Dumps up to 42 in high hydraulically
  • Hydraulic dump is safer and less fatiguing for operator
  • Serviceable graphite shaft seals
  • No V belts in the drive reduces maintenance
  • Great for high-volume mixing
  • Economical pricing
  • Recommended for 321E if not using CM71

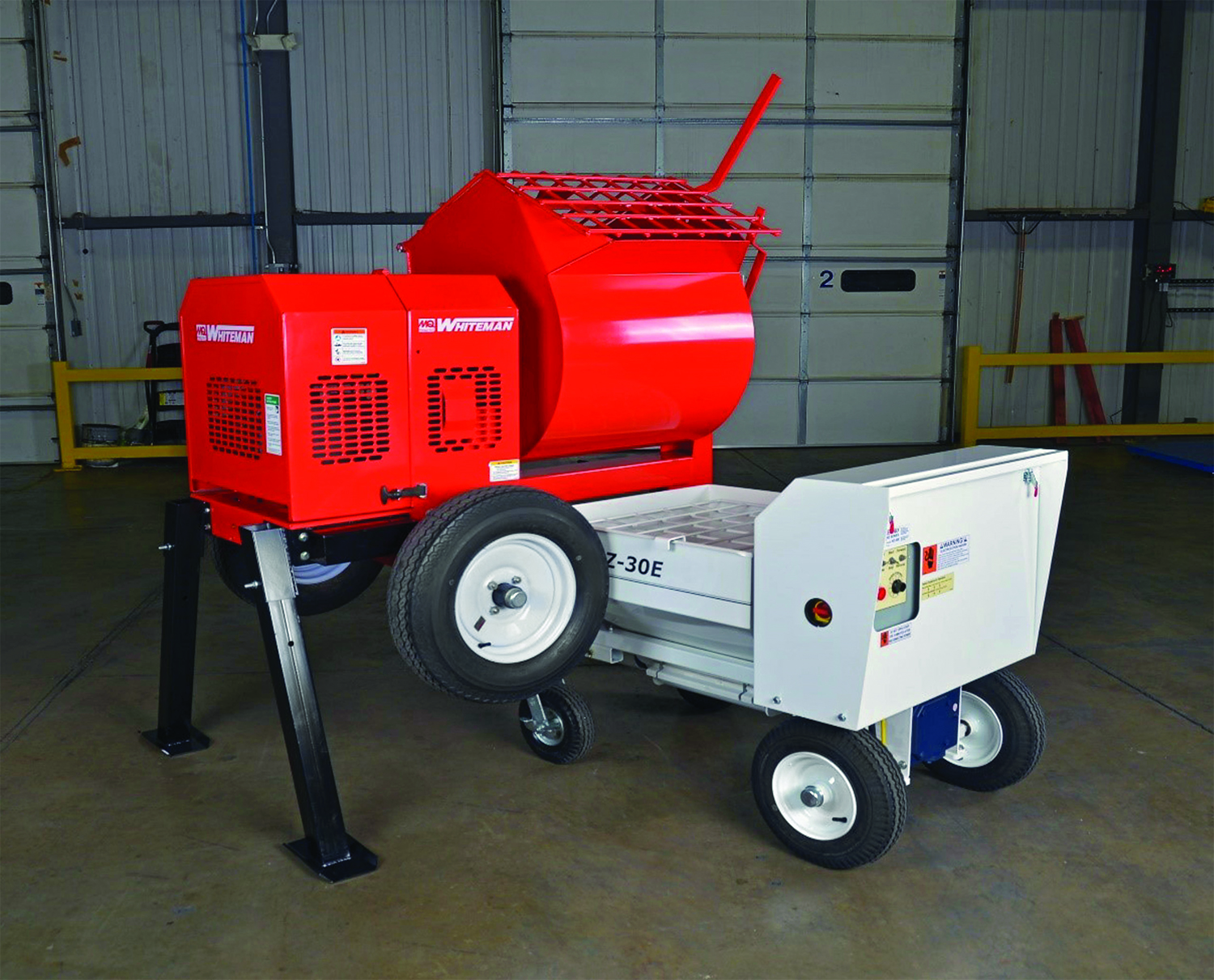

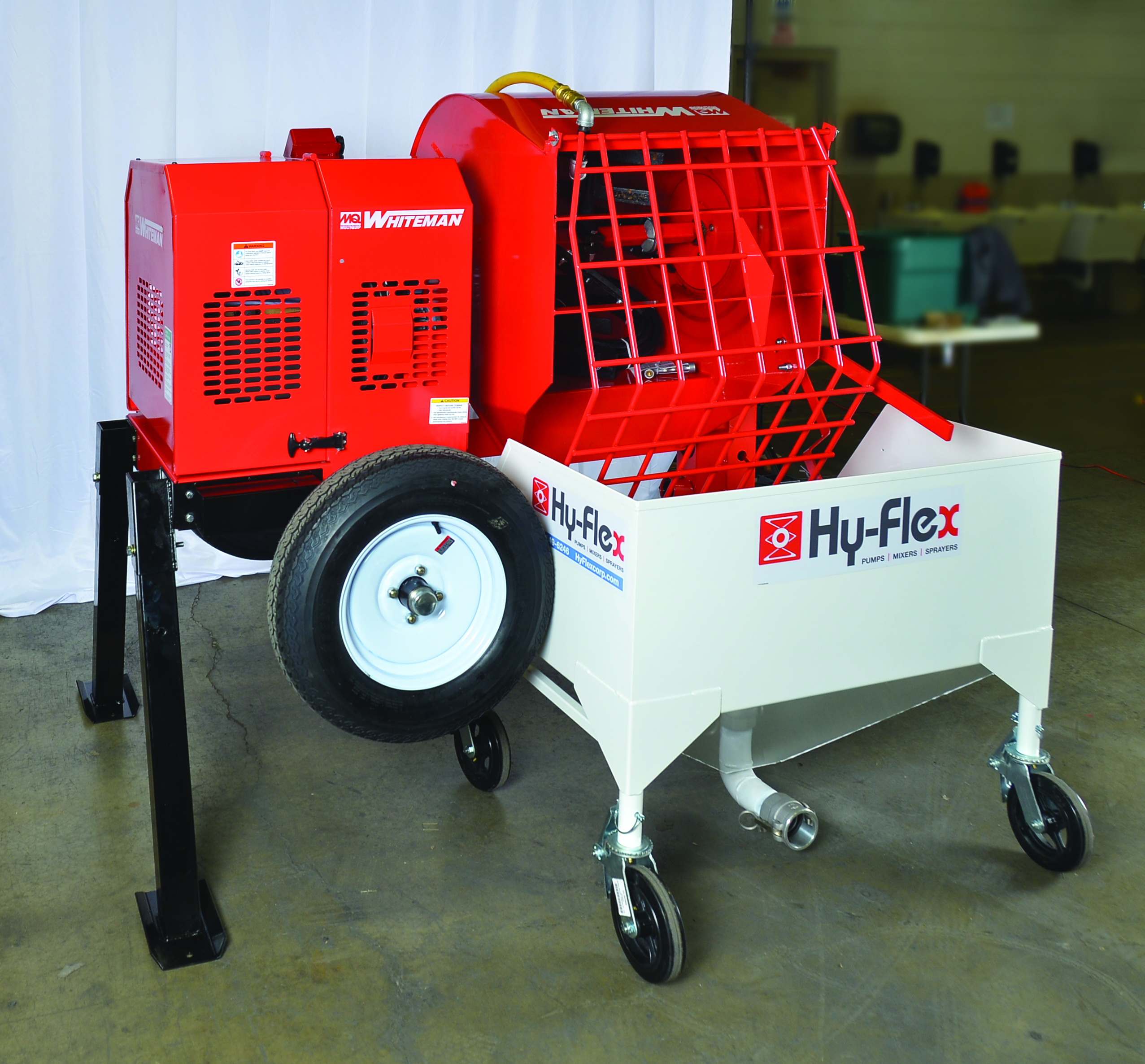

  • Legs and water meter options available


APPLICATIONS

  • Low/Medium/High-Density Fireproofing
  • Waterproofing
  • Plaster/Stucco Spraying
  • Injection Work
  • Manhole Restoration
  • Concrete Repair Mortar
  • Cellular Concrete
  • Bridge Repair
  • Self-Leveling Floor Underlayment
  • Slab Jacking
  • Cementitious Coatings Under 1/8 inch Aggregate
