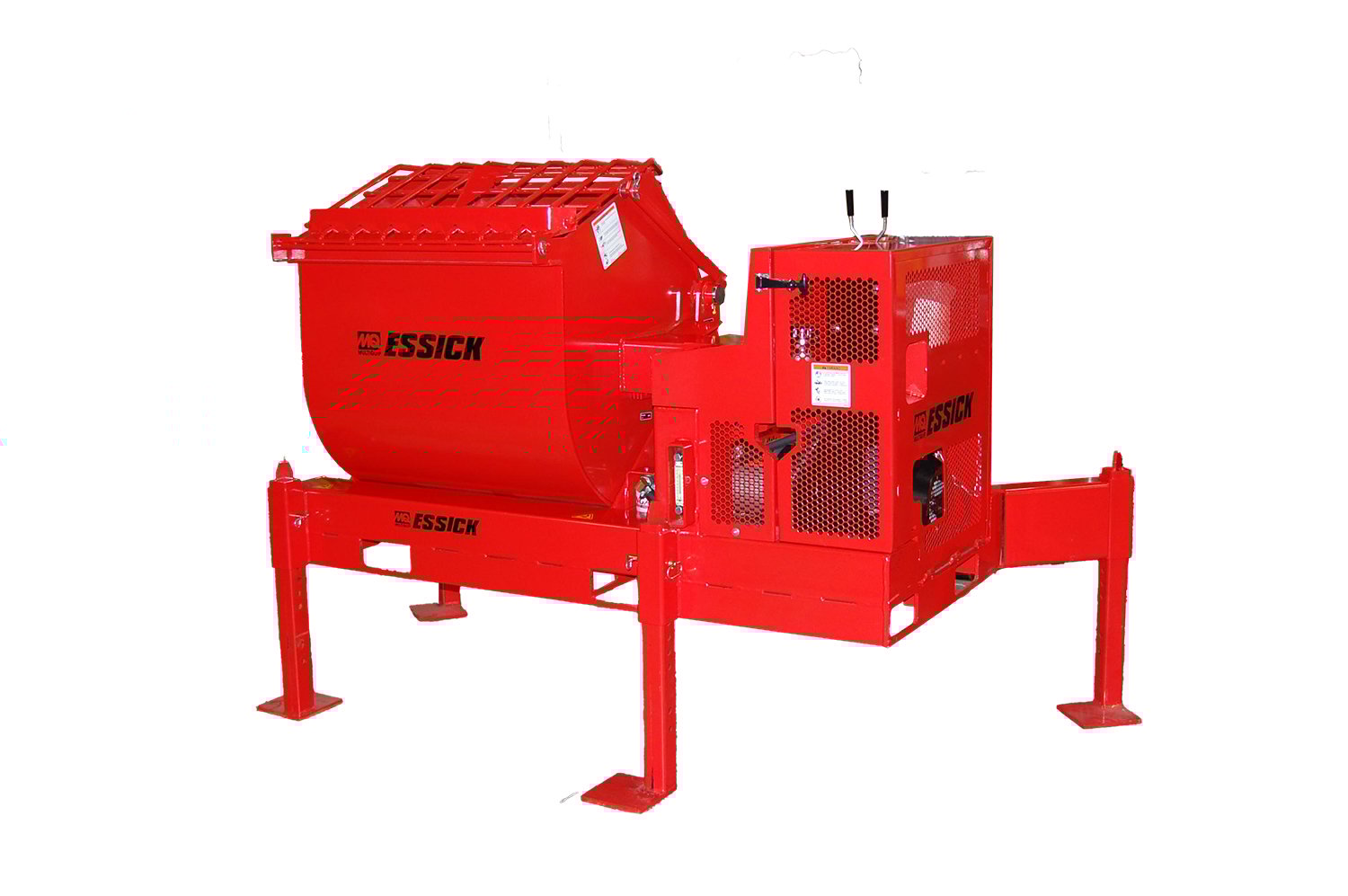

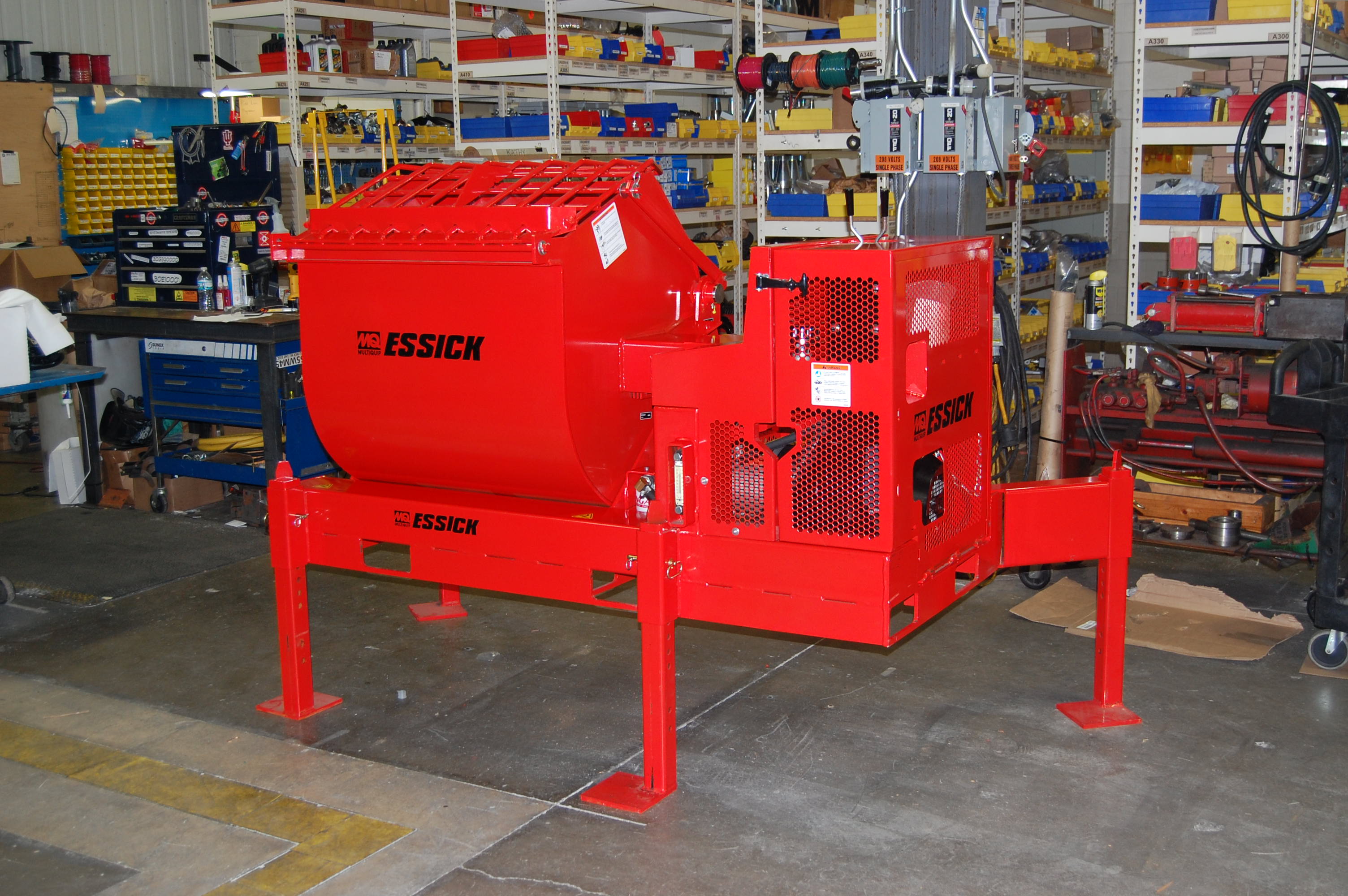

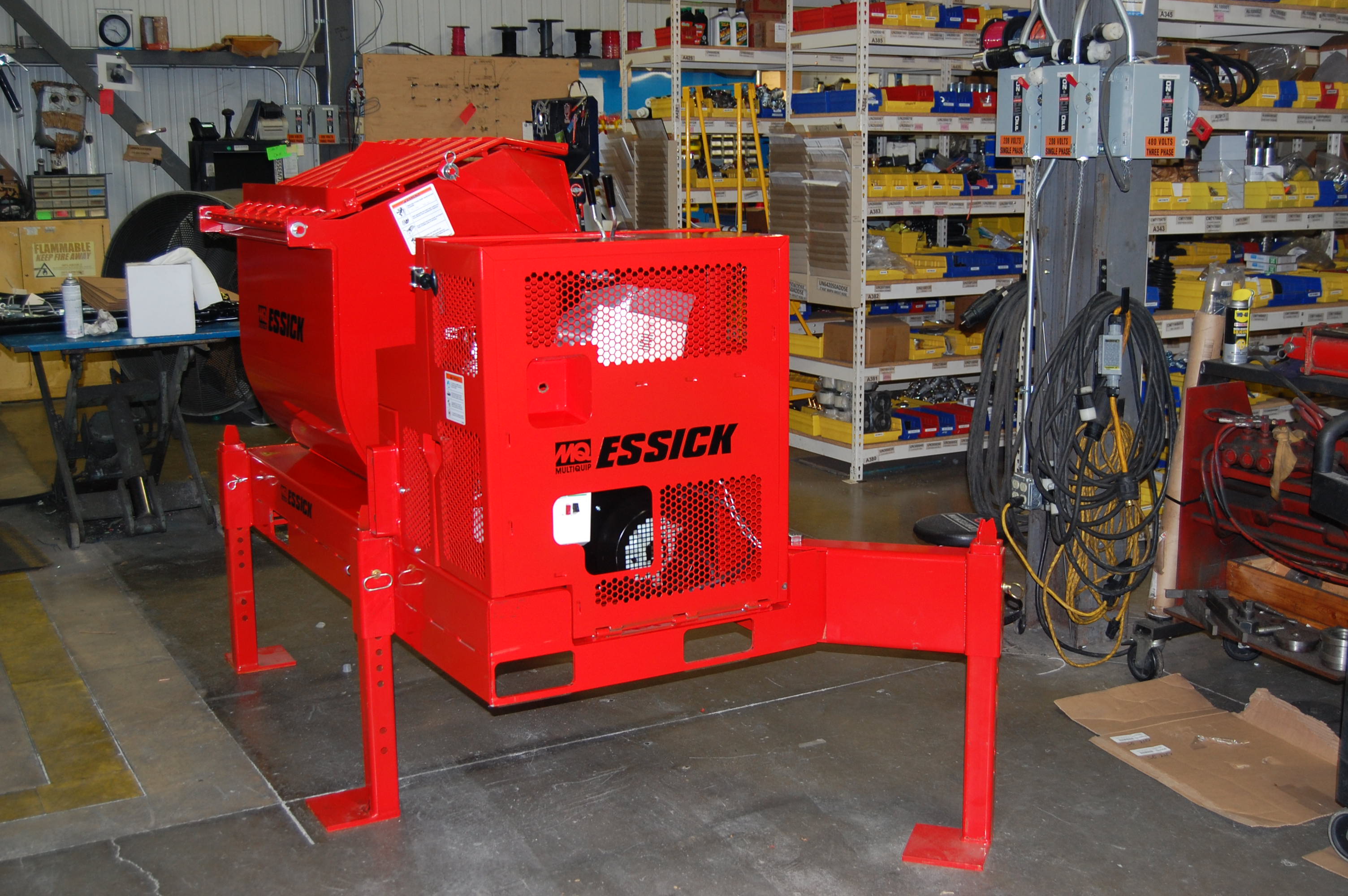

PRO12E51 12 Cu. Ft. Stationary Platform Mixer

OVERVIEW

A perfect product for high-volume mixing, the PRO12E51 Stationary Platform Mixer can produce more than 40 bags per hour. It is recommended for use alongside the 321E and HZ-30G in medium to high volume applications or when a low charge height is required. This mixer also comes with repositionable stabilizer legs, among many other useful features. You can rely on it for the long run.

SPECIFICATIONS

Capacity	12.0 cu ft/3.0 bags
Power Options	Electric 5 hp 230, 28 FLA, 1Ø or 230/460, 16/8 FLA, 3Ø
NEMA Plug Configuration	30A 250V, 1Ø (L6-30P), 20A 3Ø 250V(L15-20P), 20A 3Ø 480V(L16-20P) Honda GX390 gas engine
Drum Type	Steel
Drive Type	Hydraulic
Dump Type	Hydraulic
Forklift Loops	Forklift Pockets
Tire Size	Stationary Stand Mount
Weight	1580 lbs
Width	89 in
Length	186 in
Height	114 in
Discharge Height	42 in
Hitch	Ball or Loop
External Heavy Duty On/Off Switch	No
Fill Rite Meter System	Yes
Water Batch Meter	Yes
Heavy Duty Adjustable Legs	Standard
Recommended Cord Size	230 V 1 ph 50'6 ga 30 A 230V 100'10 ga 30 A 230V 200'6 ga 30 A 230V 230 V 3 ph 50'10 ga 30 A 230V 3 ph 100'8 ga 30 A 230V 3 ph 200'8 ga 30 A 230V 3 ph 460 V 3 ph 50'12 ga 30 A 230V 3 ph 100'12 ga 30 A 230V 3 ph 200'12 ga 30 A 230V 3 ph

BENEFITS

28 A 230V 1Ø, 5 hp stocked
Hydraulic drive and dump
Large capacity – 3 bags
Produces greater than 40 bags per hour
Easy to load without platform
Dumps up to 42 in high hydraulically
Safer and less fatiguing hydraulic dump
Forklift pockets for easy maneuvering
Easy-to-access dump and mix controls
Greaseable shaft seal for long life
Repositionable stabilizer legs
Great for high-volume mixing
No V belts or gears in the drive reduces maintenance
Recommended for HZ-30G or 321E, or when in high or medium volume applications or if a low charge height is required.
Water meter option available
